SUN VALLEY SUBDIVISION

Type of project
Reinforced Soil Walls and Slope Reinforcement
Year
2020
Location
ANTIPOLO CITY, RIZAL  - REGION IV-A - Philippines
Client
Piedras Negras Construction and Development Corporation

Challenge

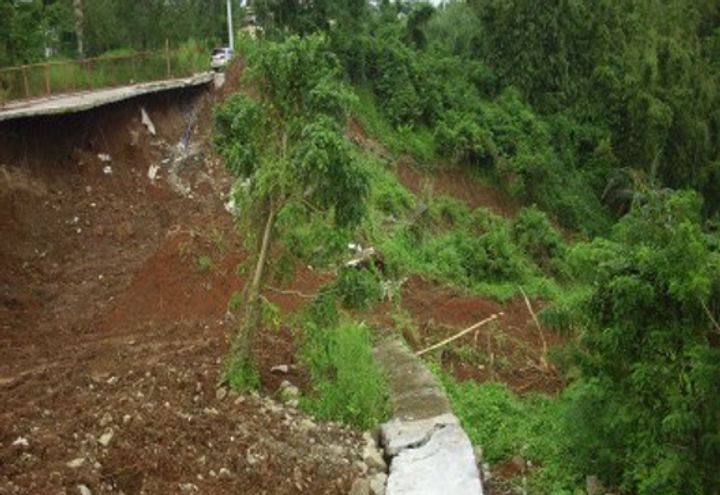

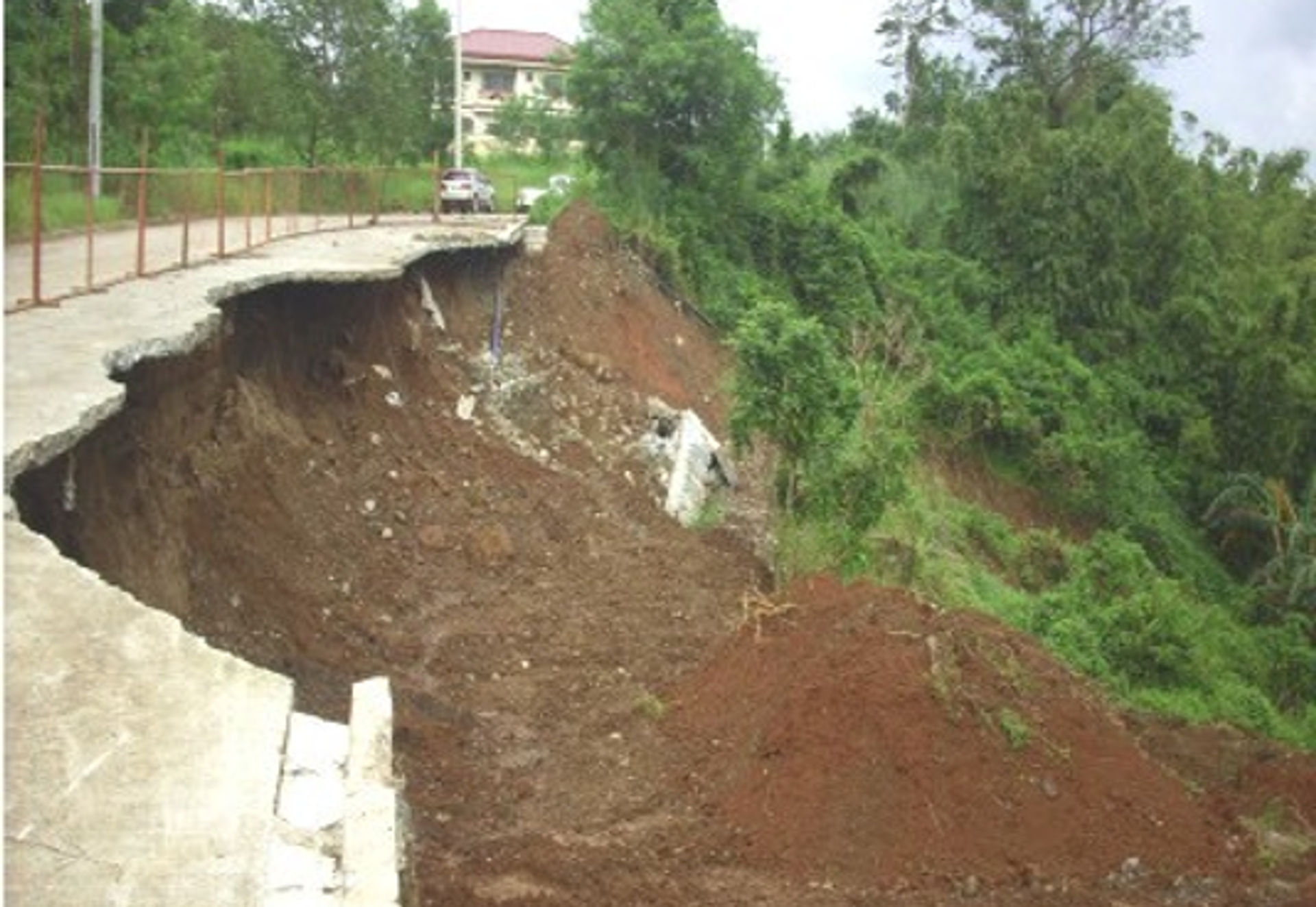

On September 26, 2009, the Philippines was devastated by a tropical storm Ondoy (or Ketsana, international name), with a record-breaking amount of rainfall that left damages on agriculture, lives, and properties in affected regions. One of the hardest hit areas was the province of Rizal. Sun Valley Subdivision, a residential community located in the mountainous landscapes of Antipolo City, Rizal has been affected. Typhoon Ondoy caused a landslide about 15 meters in height below a portion of its major service road.

Solution

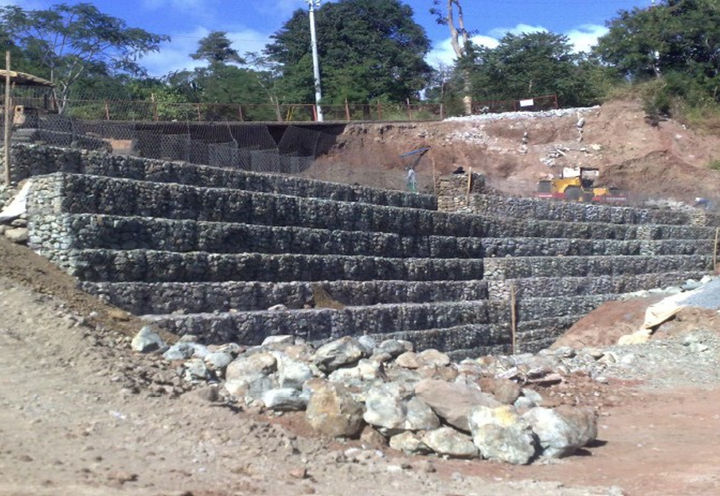

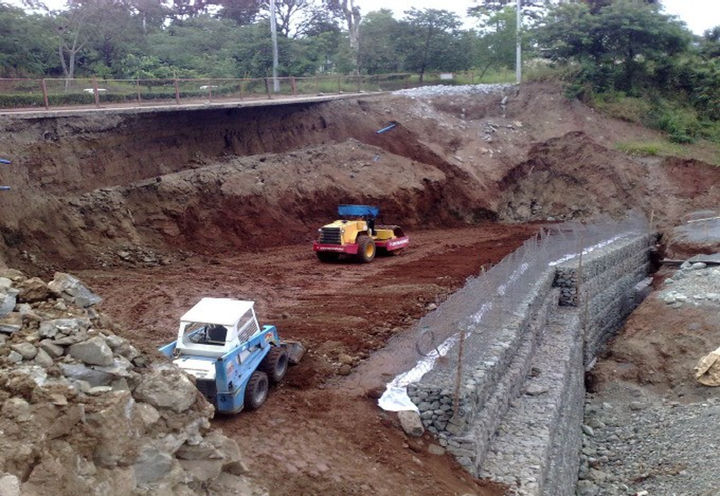

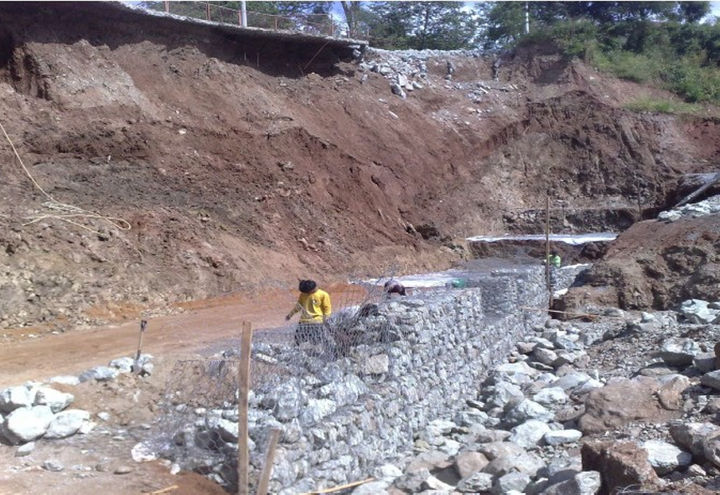

After soil investigation and analysis, Maccaferri engineers designed a mechanically-stabilized earth (MSE) wall system composed of Terramesh System units and gabions. The structural integrity of the MSE wall was verified using Maccaferri's internal design software and was approved by the contractor's (Piedras Negras) engineers. Terramesh units and gabions provide a porous facing, and naturally blends with the green landscape of Sun Valley.

Download
the Success Story

SUN VALLEY SUBDIVISION

Download
SUN VALLEY SUBDIVISION

Our products for
this Success Story

TerraMesh
TerraMesh
Gabions
Gabions
Nonwoven Geotextiles
Nonwoven Geotextiles
